BEC-WC-28   Welding Chuck

BEC-WC-28   Welding Chuck - 3 Jaw Self Centering - Each Jaw is reversible and attaches by means of Quickset Ball Lock Pin to each of 3 Machined Slide Rails. Our Welding Chuck has a Scroll Plate Machine Chuck at its center as opposed to the standard use of a screw actuated cam lever. Our chuck allows to use of mush more gripping force with out "slipover". We also provide replaceable End Plates which are bolted to each Jaw. These allow repeat welding to the part when lowed, for added safety against the part falling from the chuck due to the effects of thermal expansion and contraction.  These chucks have a standard holding capacity of 1 1/2" - 26" OD and 6" to 33" ID.

BEC-P-4000-6

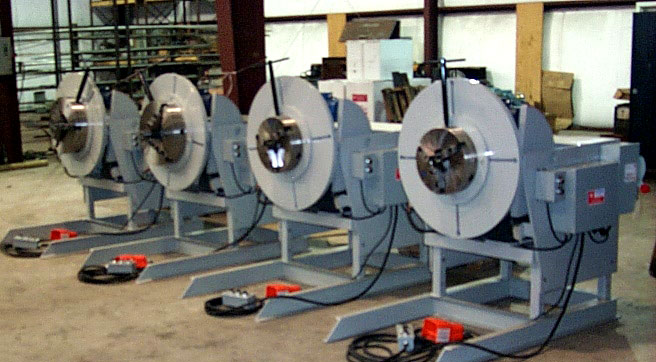

Positioners and CHucksBEC-P-4000-6 Positioners  Adjustable Height-Machined Table-Self Adusting Ground for trouble free welding-Limit Switch-25 ft. Remote Control Pendant-25 ft Heavy Duty Variable Speed Footswitch with Relay installed in Control to protect against shortcircuit due to simultaneous use of Pendant and Footswitch-Variable Speed Rotation-Constant Speed Tilt

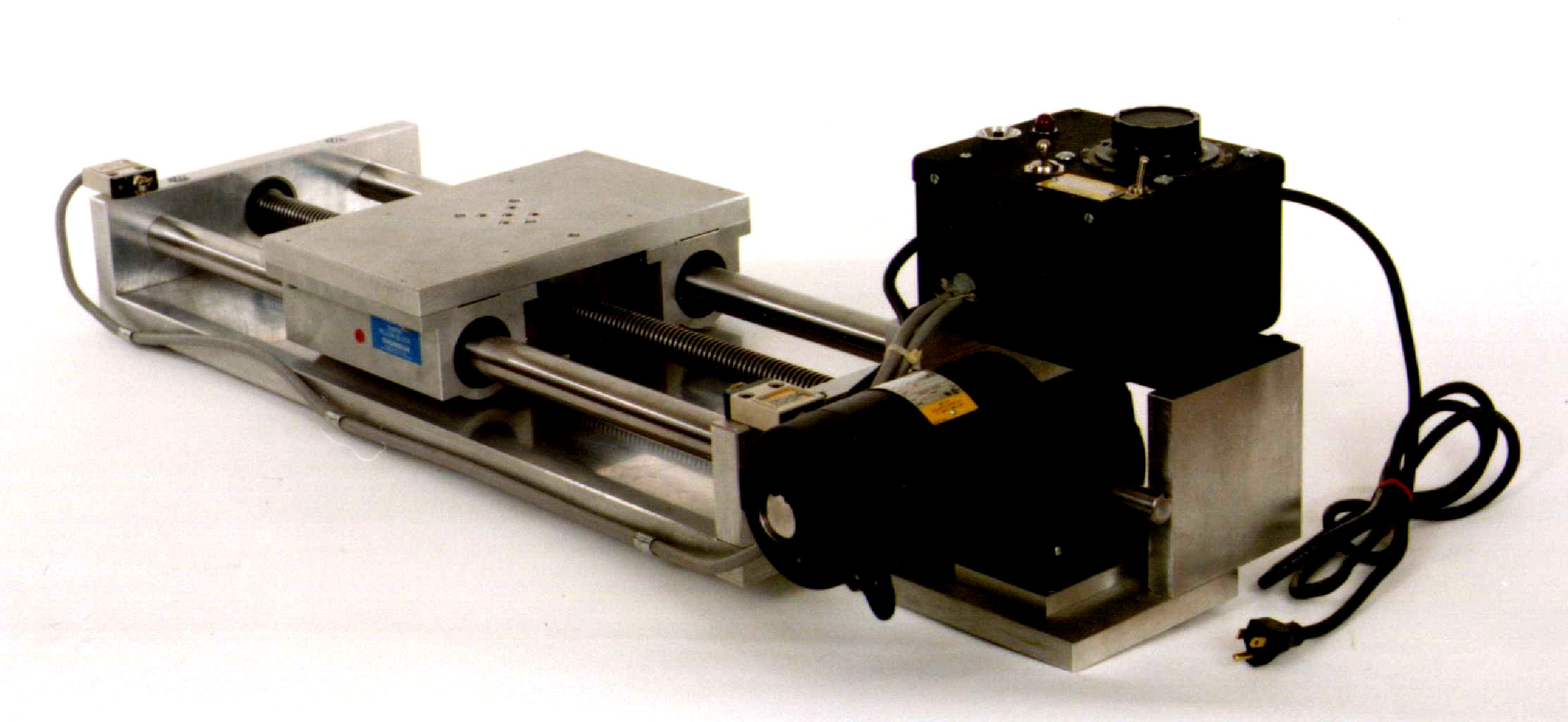

Crossfeed Assemblies

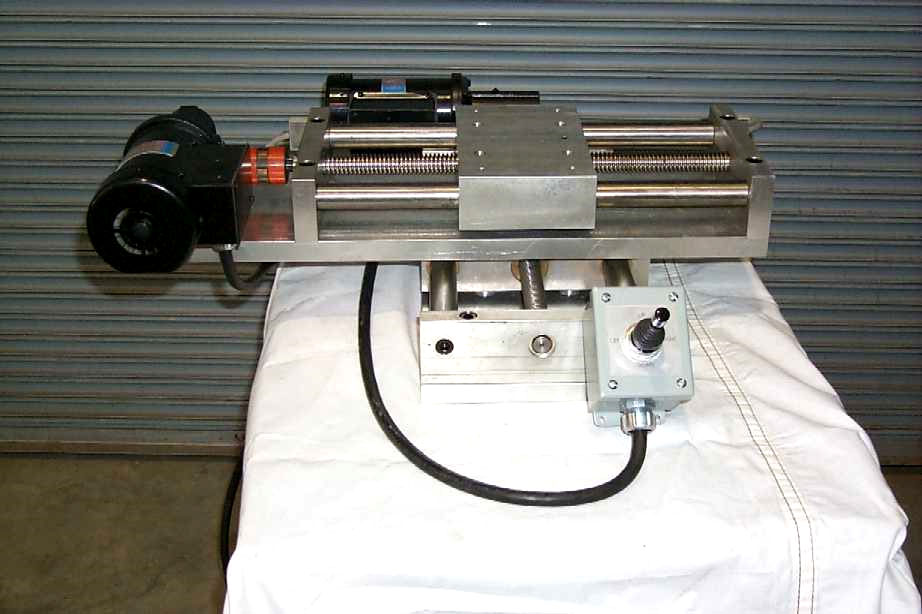

CrossFeed AssembliesBEC Crossfeed Slide Assemblies are precision made to provide quick and accurate manipulator set-ups when positioning cutting heads and welding heads for burn or welding. Factory mounted crossfeed slides on BEC manipulators and cutoff machines provide the utmost in reliability for increased production and quality of work.CrossFeed Assembly 2

Model

LoadCap.

Description

CFS-4M

150#

4” Crossfeed Slide Assembly, Manual

CFS-6M

300#

6” Crossfeed Slide Assembly, Manual

CFS-6P

300#

6” Crossfeed Slide Assembly, Powered

CFS-12M

500#

12” Crossfeed Slide Assembly, Manual

CFS-12P

500#

12” Crossfeed Slide Assembly, Powered

CFS-24P

500#

12” Crossfeed Slide Assembly, Manual

Powered Slides

Thru 12”

Variable Speed Option Add:

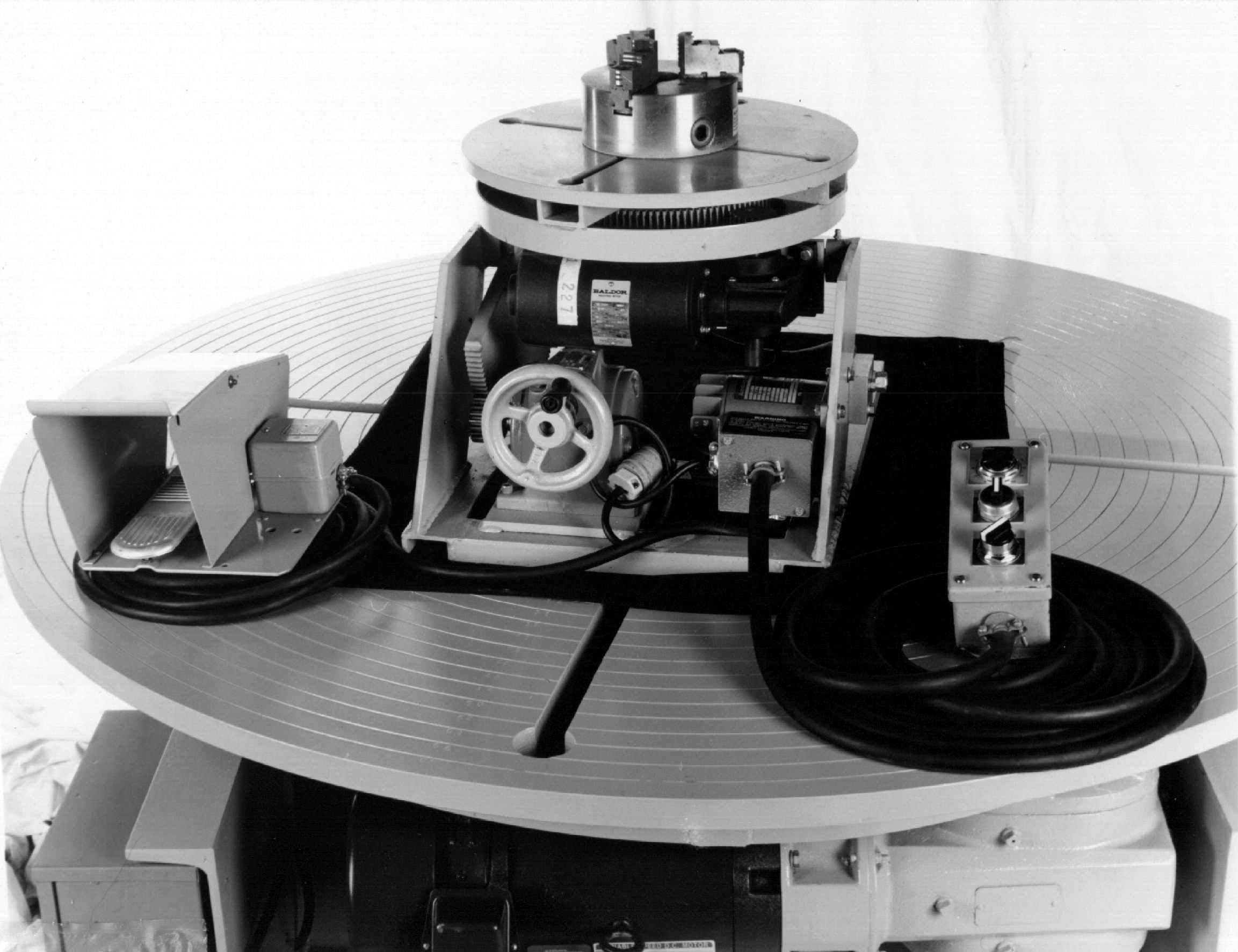

Floor Turntables

Floor Turntable

Model

Load Cap

Center of Gravity

Rotational Torque

Variable Speed

HP

Variable Speed RPM

FT-2500

2,500

12”

25,000 IN LBS

¾

1.80

FT-6000

6,000

12”

30,000 IN LBS

¾

1.20

FT-12000

12,000

12”

36,000 IN LBS

1.0

1.0

FT-20K

20,000

12”

42,000 IN LBS

1.0

1.0

FT-40K

40,000

12”

54,000 IN LBS

1.5

0.80

FT-80K

80,000

12”

96,000 IN LBS

Outboard Support Stands

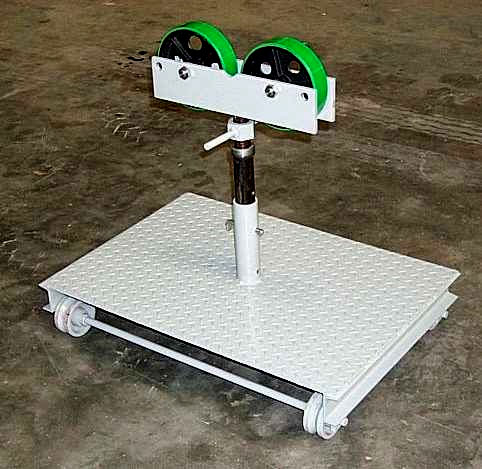

BEC OBS 3000BEC OBS-3000
An indispensable companion and naturally compliments any job utilizing a welding Positioner. They are also used in pairs to do manual rollout work. The capacity the BEC OBS-3000 is 2” through 18” diameter pipe. Allowing most of the job requirements in a shop to be covered with this one general purpose stand.

Has a weight capacity of 3000 pounds and an adjustable height range from 20 to 36”. Utilizing a 1 ½ Acme Adjustable screw provides strength, stability and smooth adjustments, even under load.

Can be ordered with steel wheels, rubber (various types and durometer), or polyurethane, depending on your application. All OBS-3000 wheels come equipped with sealed needle bearings to provide a long life under rugged conditions.

Comes standard with a three point adjustable base or can be ordered with V-Groove wheels (3000V) on a square base for track mounting and extra stability.

Can also be custom ordered to suite your particular needs or requirements


Model

Description

Height Range

Weight Cap.

Dia. Range

OBS-3000A

Adjustable

21 – 36”

3000

2 – 18”

OBS-3000V

Sq Base w/ Groove Wheels

21 – 36”

3000

2 – 18”

OBS-5A

Adjustable

21 – 44”

5000

2 – 30”

OBS-10A

Adjustable

21 – 44”

10000

2 – 30”
